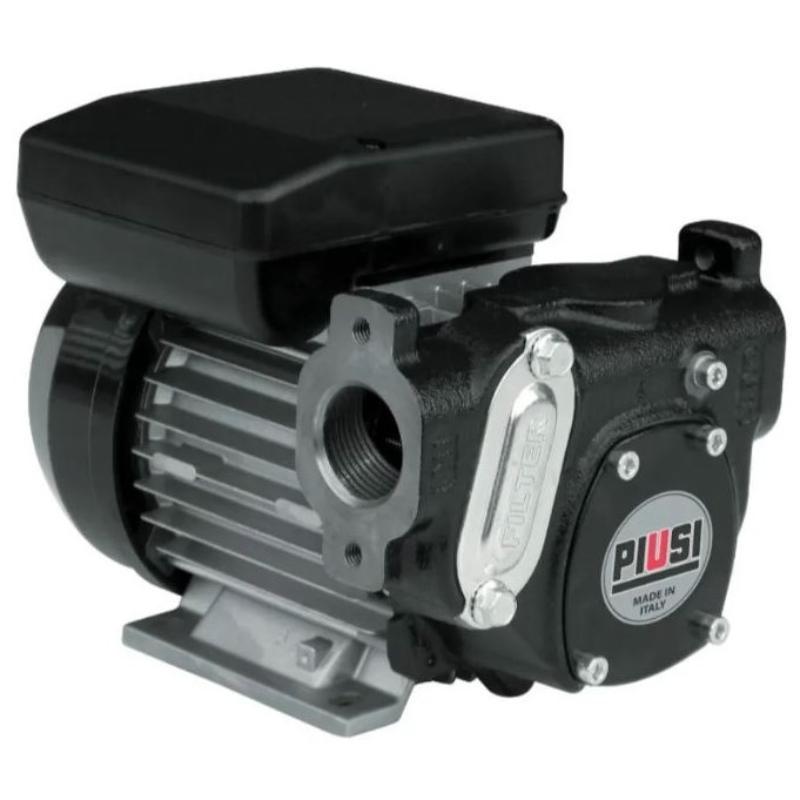

Panther 72l - 1" Diesel Vane Pump

The Panther pump for transferring diesel is one of PIUSI's original products

Features:

• Flanged inlet and outlet connection
• Integrated by-pass valve for precise adjustment of the quantity of flow transferred.
• Vane pump with sintered steel rotor and acetal resin vanes.
• Induction motor with aluminum casing
• Thermal protection protects it in case of motor overloads.
• Integrated mesh filter

Specifications:

• Maximum flow rate: up to 72 liters per minute
• Voltage: 230V / 50Hz
• Power (Watt): 500
• Max Amps: 4.2
• RPM: 2900
• Inlet/Outlet: 1 Inch BSP Flanged connection
• Maximum suction head height: 2M (without non return valve) - 4M (with non return valve)
• Maximum suction distance from tank: 6M
